D.Hat Product Development Kit


5 in stock

SKU: DHAT-PDK Category:

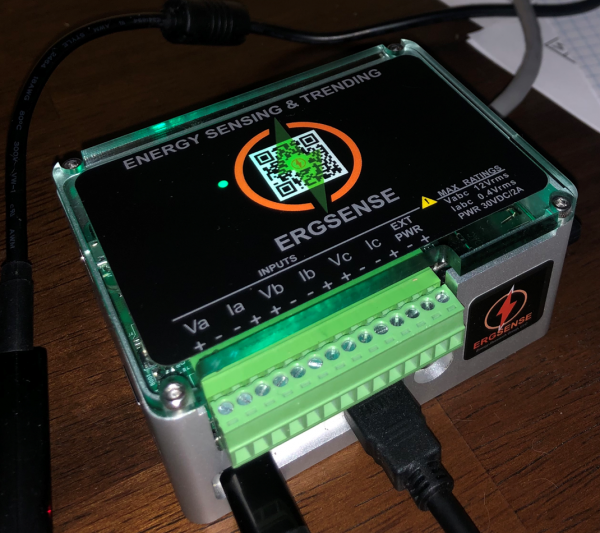

  • Integrated D.Hat System — $799
    — 1 Ergsense D.Hat board pre programmed with DTECTS FW
    — 1 Raspberry PI4B – 4GB SBC setup for USB boot (no SD required or supplied)
    — 1 128GB USB3 Flash with OS, DTECTS Server SW and user instructions
    — 1 Machined Aluminum enclosure
  • Accessories included
    — 2 600VAC rated VTs with ratios of 12.5, 25 and 50:1
    — 2 150A:333mV CTs for use on loads up to 40kW 3ph 480V motors
    — 1 14 position mating screw terminal block connector
    — 1 24VDC / 1A PSU (80 – 264VAC input, input blade kit supplied)
    — 1 35mm DIN mounting clip with hardware for the system box
  • Resources — First year included, access is $99 / year thereafter
    Registered purchasers of the PDK receive access to:
    — D.Hat HW design files with option to purchase licenses to DTECTS FW & API
    — Access to a secure repository supporting the SW stack.  The DTECTS Server SW is licensable as an option
    — Access to the ergsense/DTECTS community support page
